BBB Windlass Chain ― G30

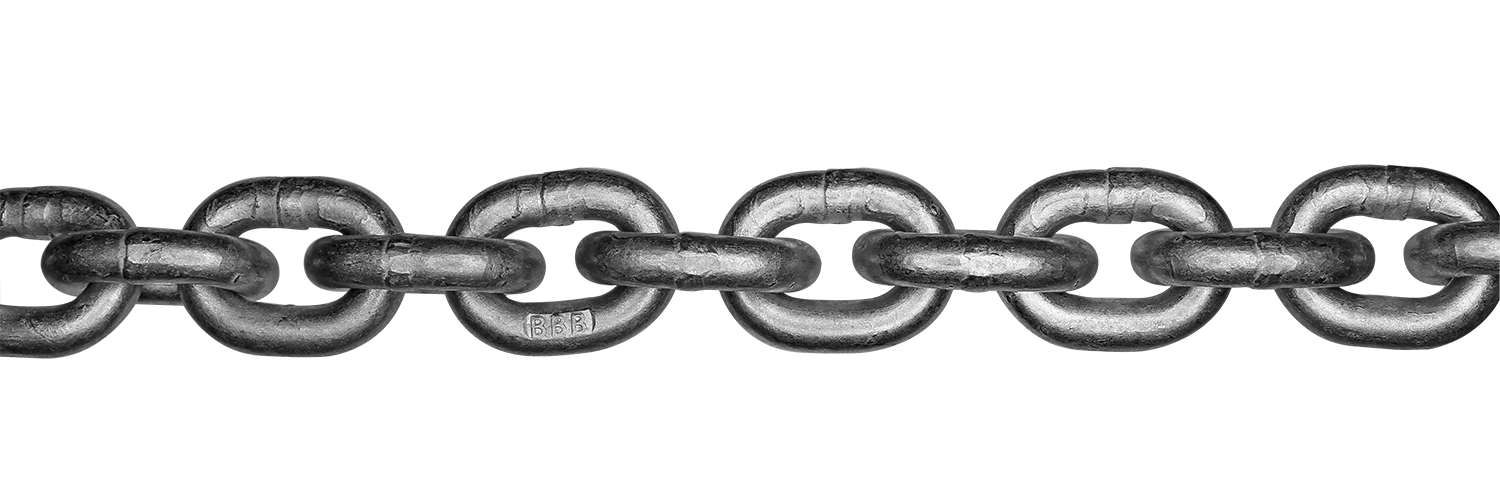

A low carbon steel chain designed with short, compact calibrated links suitable for windlasses and general anchoring.
The BBB Windlass Chain* is a low-carbon steel chain designed with short, compact calibrated links suitable for windlasses and general anchoring. Check manufacturer’s specification prior to purchase.
Finish: Hot Dip Galvanized
Packaging: Full Drums
Warning: Working Load Limit must not be exceeded. Not to be used for lifting or hoisting applications.
| TRADE SIZE in | WIRE DIAMETER | INSIDE DIMENSIONS | WORKING LOAD LIMIT | BREAKING STRENGTH | ||||||
| mm | in | LENGTH | WIDTH | kg-force | pound-force | kg | lb | |||
| mm | in | mm | in | |||||||
| 1/4 | 7.1 | 0.2 | 21.8 | 0.86 | 10.9 | 0.4 | 590 | 1300 | 2360 | 5200 |
| 5/16 | 8.7 | 0.3 | 24.7 | 0.97 | 12.7 | 0.5 | 862 | 1900 | 3448 | 7600 |
| 3/8 | 10.3 | 0.4 | 27.2 | 1.07 | 15.7 | 0.6 | 1202 | 2650 | 4808 | 10600 |
| TRADE SIZE in | PART ID | FULL DRUM | ||||
| WEIGHT | LENGTH | |||||
| kg | lb | m | ft | |||
| 1/4 | 10315911 | 261 | 576 | 243.8 | 800 | |
| 5/16 | 10315912 | 274 | 605 | 167.6 | 550 | |
| 3/8 | 10315913 | 283 | 624 | 121.9 | 400 | |
