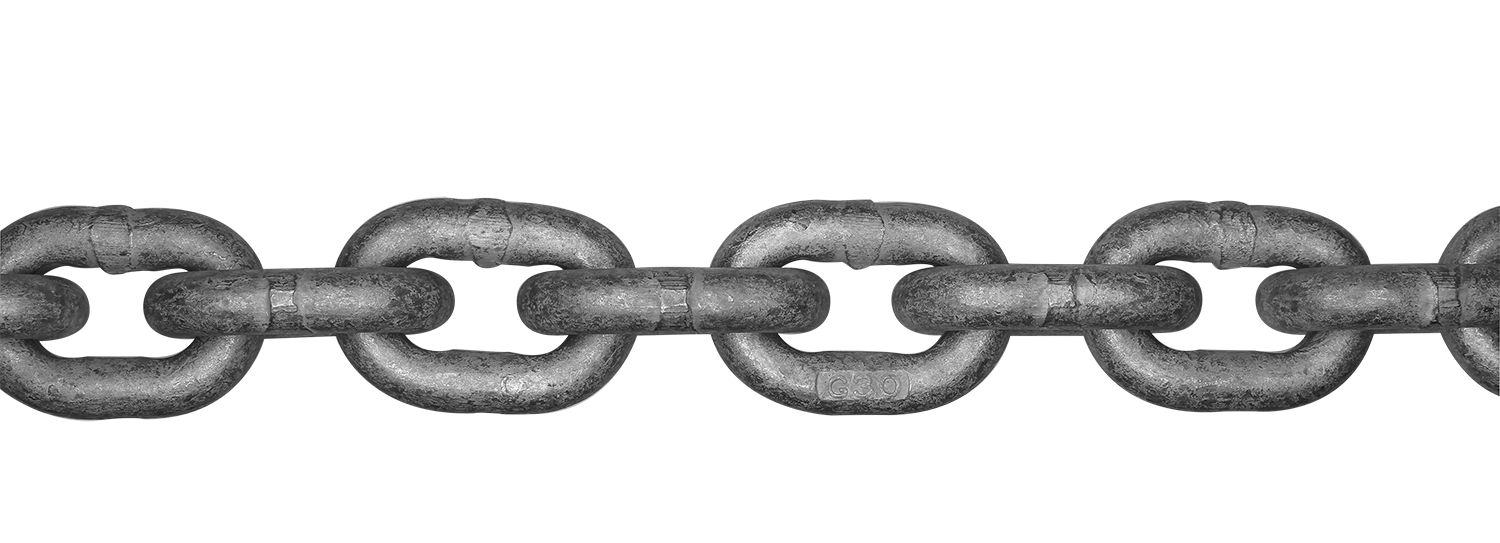

ISO Proof Coil Chain ― General Purpose/Anchor Chain ― G30
A low carbon steel general purpose/anchor chain with an ISO short pitch link. Used where high tensile strength is not required.
General Purpose/Anchor Chain
ISO Proof Coil Chain* is low carbon steel general purpose/anchor chain with an ISO short pitch link. It is used in applications where high tensile strength is not required.
Finish: Hot Dip Galvanized
Packaging: Full Drums, Half Drums, and Pails
* Never exceed working load limit
* Not for overhead lifting
| TRADE SIZE in | WIRE DIAMETER | INSIDE DIMENSIONS | WORKING LOAD LIMIT | BREAKING STRENGTH | ||||||
| mm | in | LENGTH | WIDTH | kg-force | pound-force | kg | lb | |||
| mm | in | mm | in | |||||||
| 3/16 | 5.5 | 0.218 | 24.64 | 0.97 | 10.16 | 0.4 | 363 | 800 | 1452 | 3200 |
| 1/4 | 7 | 0.276 | 25.4 | 1.00 | 12.7 | 0.5 | 1300 | 2800 | 2360 | 5200 |
| 5/16 | 8.4 | 0.329 | 28.45 | 1.12 | 12.7 | 0.5 | 1900 | 4100 | 3448 | 7600 |
| 3/8 | 10 | 0.394 | 31.24 | 1.23 | 15.75 | 0.62 | 2650 | 5800 | 4808 | 10600 |
| 1/2 | 13 | 0.519 | 38.1 | 1.50 | 20.57 | 0.81 | 4500 | 9900 | 8164 | 18000 |
| 5/8 | 16 | 0.630 | 48.26 | 1.90 | 25.65 | 1.01 | 6900 | 15200 | 12520 | 27600 |
| 3/4 | 20 | 0.781 | 55.88 | 2.20 | 27.69 | 1.09 | 10600 | 23300 | 19232 | 42400 |
| TRADE SIZE in | PLASTIC PAIL | HALF DRUM | FULL DRUM | |||||||||||||
| WEIGHT | LENGTH | PART ID | WEIGHT | LENGTH | PART ID | WEIGHT | LENGTH | PART ID | ||||||||
| kg | lb | m | ft | kg | lb | m | ft | kg | lb | m | ft | |||||
| 3/16 | 47 | 102 | 76.2 | 250 | 10312737 | 148 | 327 | 243.84 | 800 | 10312727 | 297 | 654 | 487.68 | 1600 | 10313036 | |
| 1/4 | 46 | 101 | 42.98 | 141 | 10312738 | 130 | 287 | 121.92 | 400 | 10312742 | 260 | 574 | 243.84 | 800 | 10313037 | |
| 5/16 | 43 | 95 | 28.04 | 92 | 10312739 | 129 | 284 | 83.82 | 275 | 10315743 | 258 | 568 | 167.64 | 550 | 10313038 | |
| 3/8 | 44 | 96 | 19.2 | 63 | 10312740 | 138 | 305 | 60.96 | 200 | 10312744 | 277 | 611 | 121.92 | 400 | 10313039 | |
| 1/2 | 44 | 96 | 10.97 | 36 | 10312741 | 121 | 266 | 30.48 | 100 | 10312745 | 241 | 531 | 60.96 | 200 | 10313040 | |
| 5/8 | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | 264 | 582 | 45.72 | 150 | 10313041 | |
| 3/4 | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | 261 | 576 | 30.48 | 100 | 10313042 | |
